Structural Steel Pipe china

Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. Gnee steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, Gnee steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.

Classification :

Seamless Pipe

+8619819888675

sale@alsdsteel.com

E-mail

PRODUCT DETAILS

Product introduction

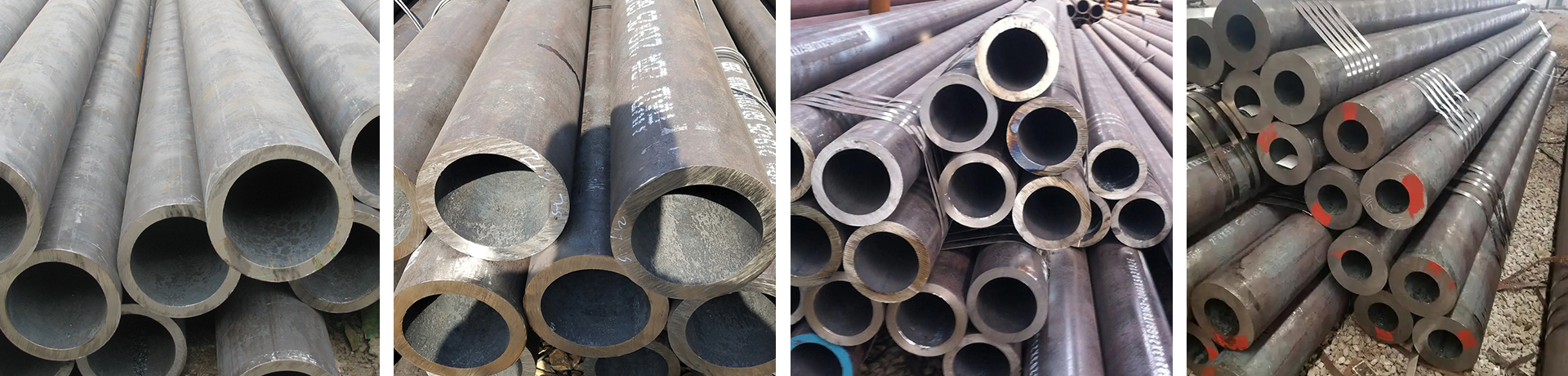

Structural Steel Pipe

Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
公称通径 DN	外径OD(mm)	SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		壁厚WT	壁厚WT	壁厚WT
		(mm)	(mm)	(mm)
1/4''	13.7	2.24	3.02	/
3/8''	17.1	2.31	3.2	/
1/2''	21.3	2.77	3.73	4.78
3/4''	26.7	2.87	3.91	5.56
1''	33.4	3.38	4.55	6.35
1-1/4''	42.2	3.56	4.85	6.35
1-1/2''	48.3	3.68	5.08	7.14
2''	60.3	3.91	5.54	8.74
2-1/2''	73	5.16	7.01	9.53
3''	88.9	5.49	7.62	11.13
3-1/2''	101.6	5.74	8.08	/
4''	114.3	6.02	8.56	13.49
5''	141.3	6.55	9.53	15.88
6''	168.3	7.11	10.97	18.26
8''	219.1	8.18	12.7	23.01
10''	273	9.27	15.09	28.58
12''	323.8	10.31	17.48	33.32
14''	355.6	9.53	11.13	19.05
16''	406.4	9.53	12.7	21.44
18''	457	9.53	14.27	23.83
20''	508	9.53	15.09	26.19
24''	610	9.53	17.48	30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Structural Steel Pipe Tolerance

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Structural Steel Pipe End

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

Structural steel pipe is a versatile and essential component in modern construction and engineering projects. Designed for high strength and durability, this pipe is commonly used in various applications, including building frameworks, bridges, and infrastructure projects. With its excellent load-bearing capabilities, structural steel pipe can support significant weight and withstand harsh environmental conditions.

Manufactured to meet stringent industry standards, structural steel pipe comes in various sizes and wall thicknesses, allowing for customized solutions tailored to specific project requirements. Its inherent strength and resilience make it ideal for both residential and commercial construction, providing long-lasting support and stability.

One of the key advantages of structural steel pipe is its ease of fabrication and installation. It can be easily welded or bolted to create complex structures, reducing construction time and costs. Additionally, the pipe can be treated with protective coatings to enhance corrosion resistance, ensuring longevity and reliability even in challenging environments.

Whether you're working on a large-scale construction project or a small renovation, structural steel pipe offers the strength and versatility needed to achieve your goals. Choose structural steel pipe for a durable, efficient, and reliable solution in your next project.

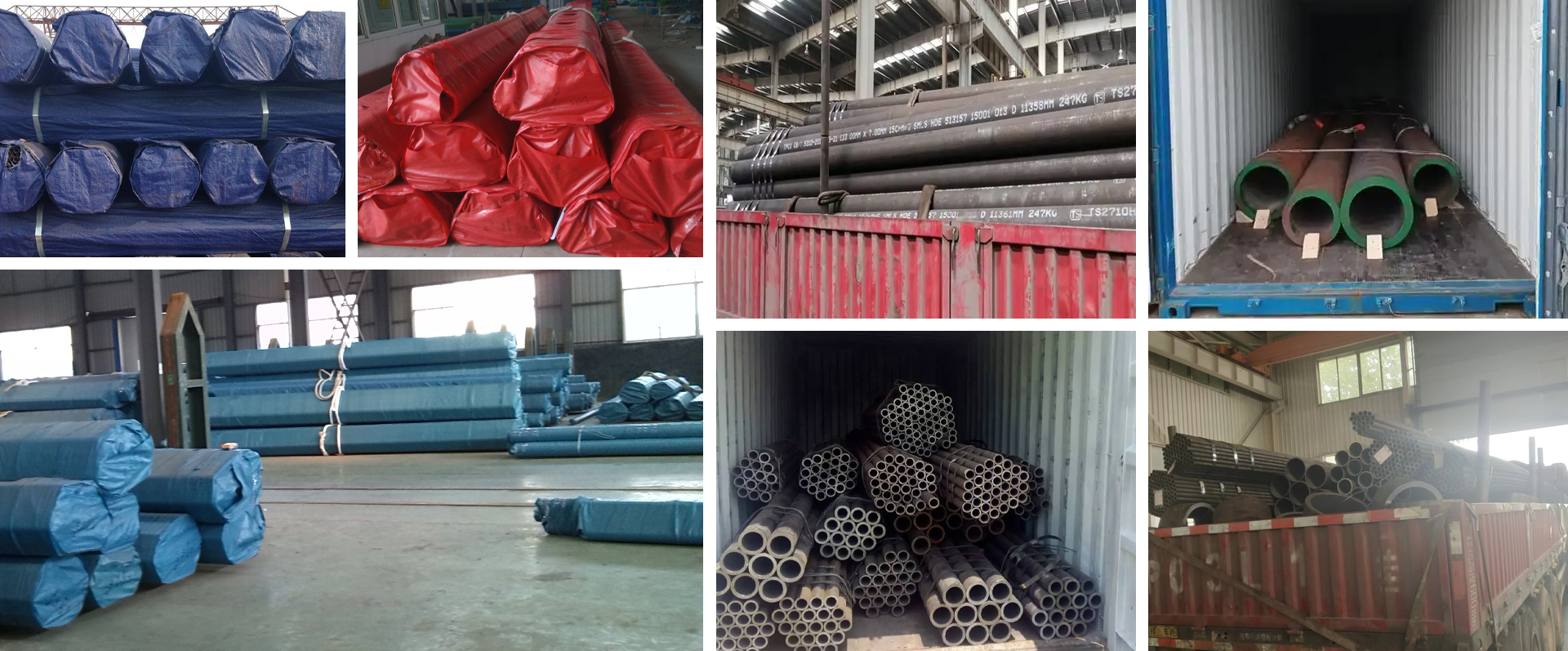

PACKING AND SHIPPING

The company has domestic first-class professional technical consultants and a team of outstanding employees with professional skills. The main products are carbon steel/galvanized steel. Stainless steel/steel coil steel bars, galvalume, color-coated coils, profiles, steel bars, aluminum products, roof panels. Products are sold to more than 60 countries and regions in Europe, the Middle East, Southeast Asia, and Australia.

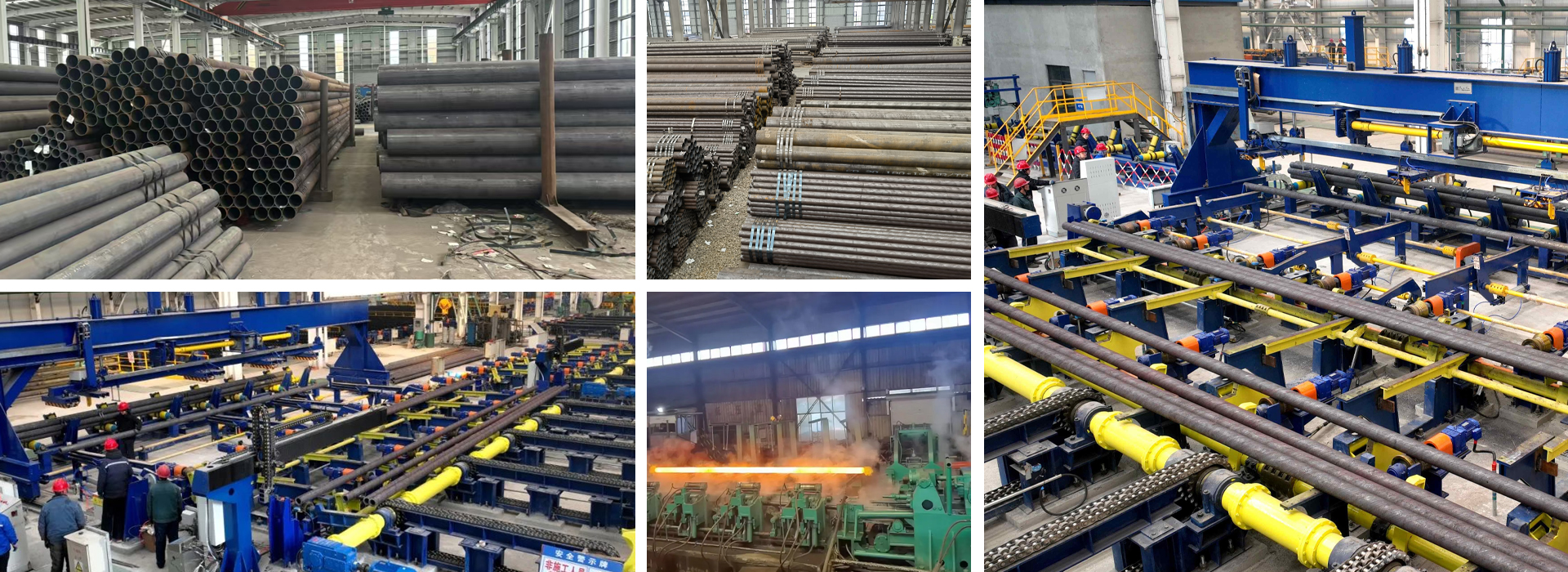

FACTORY APPEARANCE

Company As 20000 Square Meters Of Indoor Storage more Than 20,000 Tons Of Inventory, Spot Product Standard Involves European Standard American Standard British Standard Australian Standard German Standard, Now According To Customer Requirements For Product Opening Strip.Cutting.Processing.Annual sales of more than 60 milliontons.Our company owns the firs class professional technique adviser in China and the excellent staffs with professional technology.The main products are carbon steel / galvanized.

APPLICATION AREAS

We promise"complete specifications, prompt delivery, high quality, competitive price, "The unwavering supports you provide, along with the increasing requirements you put contributes to more varied high-quality products with more competitive prices we offer.Win-win situations are always our pursuit.

CUSTOMER VISIT

OUR ADVANTAGE

We have won recognition from our clients due to our good creditand good services.

Professional

Have perfect technical management and R&D process

Experience

Focus on the steel industry for many years

Quality

Product quality meets industry standards

Service

Our company has a professional service team

FAQ

Q：Do you accept the third party inspection?

A：Yes absolutely we accept.

Q: What ports of shipment are there?

A: We ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q: How many countries you already exported to?

A: Exported to more than 80 countries mainly from America, Canada, Brazil, Chile, Colombia, Thailand, Myanmar, Vietnam, United Arab Emirates and etc.

Q:How about the delivery time?

A:Within 15-45 days after we confirm you requirement.

Q:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.weaccept the third party inspection absolutely.

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
